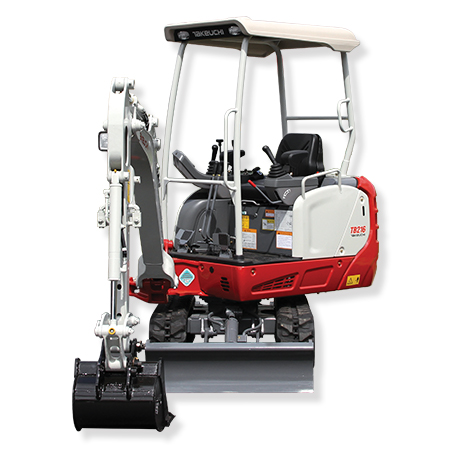

The TB216 is a compact yet powerful mini excavator—perfect for jobs in tight, confined environments. With its retractable undercarriage, it effortlessly fits through narrow gates and standard doorways. Redesigned for enhanced operator comfort, performance, and ease of maintenance, this machine is rugged, dependable, and built to excel on various job sites
Key Features
-
Compact Design
Retractable undercarriage and minimal dimensions make it ideal for restricted-access projects -
Efficient Hydraulic System
Equipped with variable displacement axial piston pumps and a two-speed auto-downshift travel system, delivering smooth, responsive control and improved torque when maneuvering or backfilling -
Durability
The boom features a topside cylinder, and hydraulic lines are internally routed for protection. A wrap-around heavy-duty counterweight further safeguards vital components -
Operator Comfort & Safety
Spacious operator station with pilot joysticks, suspension seat, adjustable armrests, safety lockout system, and optional ROPS/TOPS canopy -
Fleet Management Ready
Comes with Takeuchi’s fleet telematics package (TFM), offering remote diagnostics, utilization tracking, and proactive maintenance alerts
Technical Specifications
-
Operating Weight: 3,900 lb (1,770 kg)
-
Engine: Yanmar 3TNV74, Tier 4 Final (~15 hp / 11.2 kW)
-
Bucket Breakout Force: 4,250 lb (1,928 kg)
-
Arm Digging Force: 1,843 lb (836 kg)
-
Hydraulic Flow: 13.4 gpm total; 8.9 gpm auxiliary
-
Travel Speed: 1.4 mph low / 2.6 mph high with auto downshift
-
Minimum Width: 38.6 in (retracted undercarriage)
Why It Stands Out
The TB216 offers a potent combination of compactness, control, and operator-centric design. Whether you’re working indoors or navigating narrow urban job sites, the TB216 ensures reliable performance with minimized fatigue—and with its robust protection and telematics, downtime is kept to a minimum.
